Overview
Quick Details
- Place of Origin:
-
China
- Brand Name:
-
ali-cable
- Model Number:
-
acar
- Insulation Material:
-
n/a
- Type:
-
High Voltage
- Application:
-
Overhead, Power Transmission
- Conductor Material:
-
Al & Al Alloy, Al & Al Alloy
- Jacket:
-
N/O, non
- Products name:
-
overhead Al Alloy acar 750mcm AAC/ AAAC/ ACSR bare conductor
- key words:
-
conductor
- Standard:
-
IEC 61089-1991 ASTM B 399-81 BS3242-1970 DIN 48201-6-1981
- Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
- Package:
-
wooden and steel-wooden drum
- Color:
-
Silver
- Conductor type:
-
acar
Supply Ability
- Supply Ability:
- 30000 Ton/Tons per Year
Packaging & Delivery
- Packaging Details
- 1. In wooden drum: 700*300*600*700
1100*400*1000*1100
1200*500*1000*1100
2. In steel wooden drum: 1800*900*950*1100
2000*1000*950*1100
2200*1100*950*1100
- Port
- Qingdao Tianjin Shanghai
- Picture Example:
-
- Lead Time :
-
Quantity(Meters) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated
We are the top one in the circle of overhead conductor, abc cable and concentric cable
OEM&DOM overhead conductor Al Alloy acar 750mcm AAC/ AAAC/ ACSR bare conductor

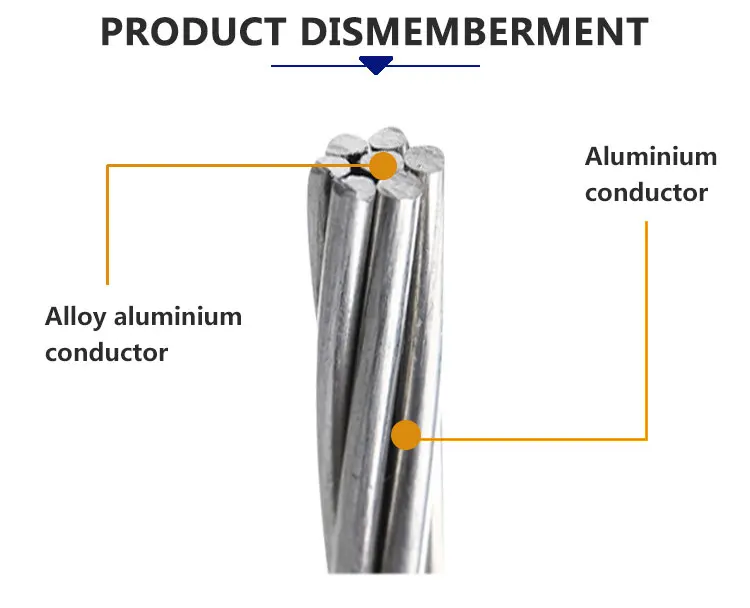

AluminiumConductor Alloy Reinforced (ACAR) is formed by concentrically stranded wires of aluminium 1350onhigh strength Al-Ma-Sialloy core. The number of wires of aluminum1350 &aluminium alloy 6201depends on the cable design.ACAR hasbetter mechanical and electrical properties as compared to an equivalent ACSR, AAC or AAAC, which extensively used in overhead transmission and distribution lines.
Product Description
Size | Stranding | Overall Diameter | Area | Linear Mass | Rated tensile strength | Max.D.C resistance at 200C | ||
MCM | 1350-H19 | 6201-T81 | mm | mm2 | kg/km | kN | ohm/km | |
250 | 12*2.913 | 7*2.913 | 14.56 | 127 | 350 | 27.5 | 0.24 | |
300 | 12*3.193 | 7*3.193 | 15.96 | 152 | 420 | 32.75 | 0.2 | |
350 | 12*3.447 | 7*3.447 | 17.24 | 177 | 490 | 33.15 | 0.168 | |
400 | 12*3.685 | 7*3.685 | 18.44 | 203 | 560 | 42.3 | 0.135 | |
450 | 12*3.909 | 7*3.909 | 19.55 | 228 | 630 | 47.1 | 0.133 | |
500 | 12*4.12 | 7*4.12 | 20.6 | 253 | 700 | 52.4 | 0.12 | |
550 | 18*2.951 | 19*2.951 | 21.66 | 279 | 770 | 63.95 | 0.111 | |
700 | 18*3.49 | 19*3.49 | 24.46 | 355 | 980 | 79.5 | 0.088 | |
750 | 18*3.62 | 19*3.62 | 25.32 | 380 | 1050 | 84.4 | 0.082 | |
Recommend Products
Company Profile
Certifications
Our factory
Packing shipping
FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Henan Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
A: We’re a factory locates in Henan Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
